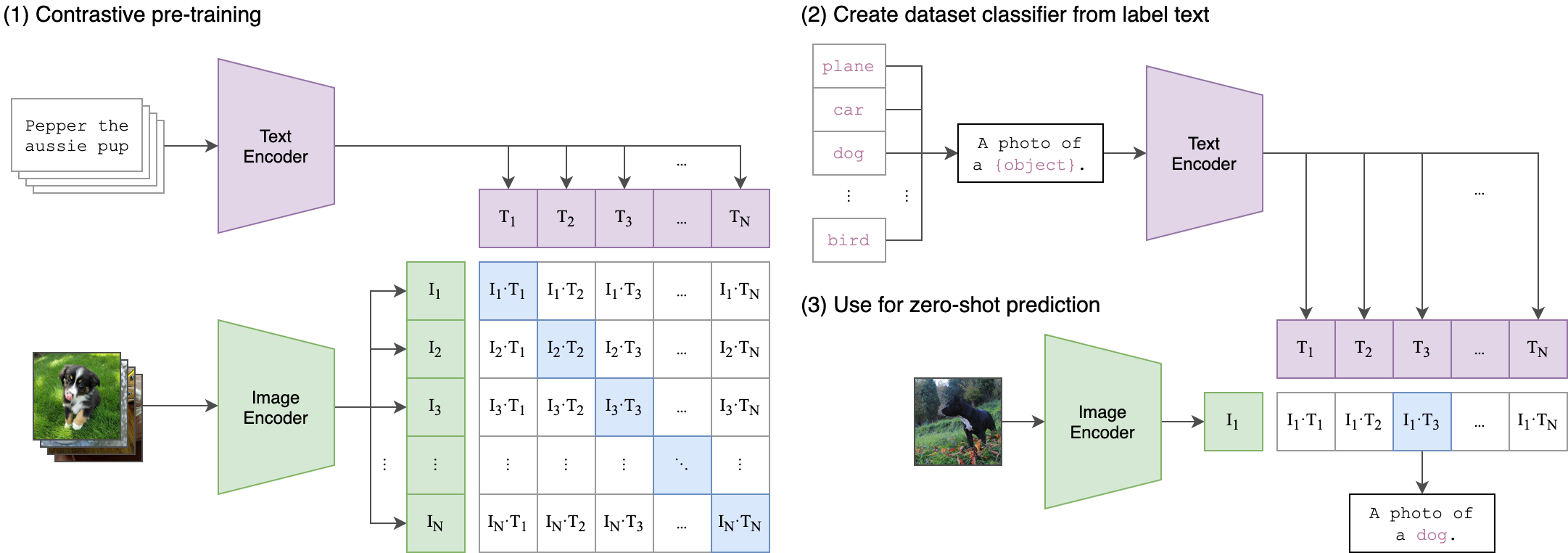

CLIP

In early days of transformers starts dominating (ViTs) comes Contrastive Language–Image Pre-training (CLIP-2021) is a powerful neural network model that learns to associate textual descriptions with images.

Dataset

The experiment are performed on kaggle dataset

APPROACH

Image Encoder may or maynot comes with CNN backbone process image

resnet
densenet

Text Encoder

bert
distilbert

Text Encoder

captions were tokenized by DistilBert

tokenizer = DistilBertTokenizer.from_pretrained("distilbert-base-uncased")
tokenizer( list(captions), padding=True, truncation=True, max_length=200 )
text_model = .model = DistilBertModel.from_pretrained("distilbert-base-uncased")

Image Encoder

transforms help to standardise the image and pass to the model

def get_transforms(mode="train"):
    if mode == "train":
        return A.Compose(
            [
                A.Resize(224, 224, always_apply=True),
                A.Normalize(max_pixel_value=255.0, always_apply=True),
            ]
        )
    else:
        return A.Compose(
            [
                A.Resize(224, 224, always_apply=True),
                A.Normalize(max_pixel_value=255.0, always_apply=True),
            ]
        )

pretrained resnet model

image_model = timm.create_model( 'resnet18', pretrained, num_classes=0, global_pool="avg" )

Projection Head

Sometimes, output_image_embedding won't be same dimension as output_text_embedding to make it same dimension it act as adapters. It follow simple residual block with non-linear activations

class ProjectionHead(nn.Module):
    def __init__(
        self,
        embedding_dim,
        projection_dim=256,
        dropout=CFG.dropout
    ):
        super().__init__()
        self.projection = nn.Linear(embedding_dim, projection_dim)
        self.gelu = nn.GELU()
        self.fc = nn.Linear(projection_dim, projection_dim)
        self.dropout = nn.Dropout(dropout)
        self.layer_norm = nn.LayerNorm(projection_dim)

    def forward(self, x):
        projected = self.projection(x)
        x = self.gelu(projected)
        x = self.fc(x)
        x = self.dropout(x)
        x = x + projected
        x = self.layer_norm(x)
        return x

CLIP Model

Combines Image and Text model by adapters and make it understandable.

class CLIPModel(pl.LightningModule):
    def __init__(image_embedding,text_embedding) -> None:
        super().__init__()
        self.image_encoder = ImageEncoder()
        self.text_encoder = TextEncoder()
        self.image_projection = ProjectionHead(embedding_dim=image_embedding)
        self.text_projection = ProjectionHead(embedding_dim=text_embedding)

    def forward(batch):
        image_features = self.image_encoder(batch["image"])
        text_features = self.text_encoder( input_ids=batch["input_ids"], attention_mask=batch["attention_mask"]  )
        image_embeddings = self.image_projection(image_features)
        text_embeddings = self.text_projection(text_features)

        # Calculating the Loss
        logits = (text_embeddings @ image_embeddings.T) / self.temperature
        images_similarity = image_embeddings @ image_embeddings.T
        texts_similarity = text_embeddings @ text_embeddings.T
        targets = F.softmax(  (images_similarity + texts_similarity) / 2 * self.temperature, dim=-1 )
        texts_loss = cross_entropy(logits, targets, reduction='none')
        images_loss = cross_entropy(logits.T, targets.T, reduction='none')
        loss =  (images_loss + texts_loss) / 2.0 # shape: (batch_size)
        return loss.mean()

Model Summary

  | Name             | Type           | Params | Mode
------------------------------------------------------------
0 | image_encoder    | ImageEncoder   | 11.2 M | train
1 | text_encoder     | TextEncoder    | 66.4 M | train
2 | image_projection | ProjectionHead | 197 K  | train
3 | text_projection  | ProjectionHead | 263 K  | train
------------------------------------------------------------
78.0 M    Trainable params
0         Non-trainable params
78.0 M    Total params
312.001   Total estimated model params size (MB)
200       Modules in train mode
0         Modules in eval mode

Training

nvitop
htop
training
